Swimming pool heat pumps

50-450kW T3 Tropical / Winter in 50Hz or 60HzMAX Commercial on/off

HP BLACK Inverter |
HP GREEN On/Off |
HP GREEN Inverter Pro |
HP INVENTOR |
HP PREMIUM |
HP COMMERCIAL Inverter |
50-450kW T3 Tropical / Winter in 50Hz or 60Hz |
Tropical kit | up to 800 m³
  • COP 6.2
  • 60/50 Hz
  • T3 Panasonic compressors
  • 3 year warranty
  • 16 units cascade
  • +55 °C / -10 °C ambient
  • Heating and cooling
Where to buy


Main Features

Commercial Microwell MAX air source swimming pool heat pump is designed for heavy duty heating and cooling pool jobs in tropical weather with occasional sand storms

  • Designed for TROPICAL weather 0~55°C or 4-season winter -10 °C
  • Durable metal design with multiple compressor system
  • Titanium Grade1 ASTM B265M titanium used inside water heat exchangers designed to work fresh, salt or chlorine water
  • Vertical fan discharge for ideal placement in noise damping chambers
  • GoldFin hydrophobic epoxy protection of the fins against sea wind, sand, dust and effective de-icing
  • Automatic overheat control to ensure heating and cooling in peak day time hot weather
  • Automatic defrost to ensure heating operations during winter time
  • Wide heating capacity with 125kW to 450kW provided by a single unit
  • Primary phase monitor protection against incorrect order of the phases or missing phase
  • T3 Panasonic compressors with built-in automatic control logic for more energy saving
  • Multiple fan speed mode to support low noise
  • Electronic expansion valve for more precise refrigerant flow for maximum COP and kW at each weather condition
  • Centralized control of up to 16 heat pumps (BMS)
  • WIFI control compatible
  • 3 years general spare parts warranty
  • On-site service support possible
  • 15 years of experience with Middle East applications

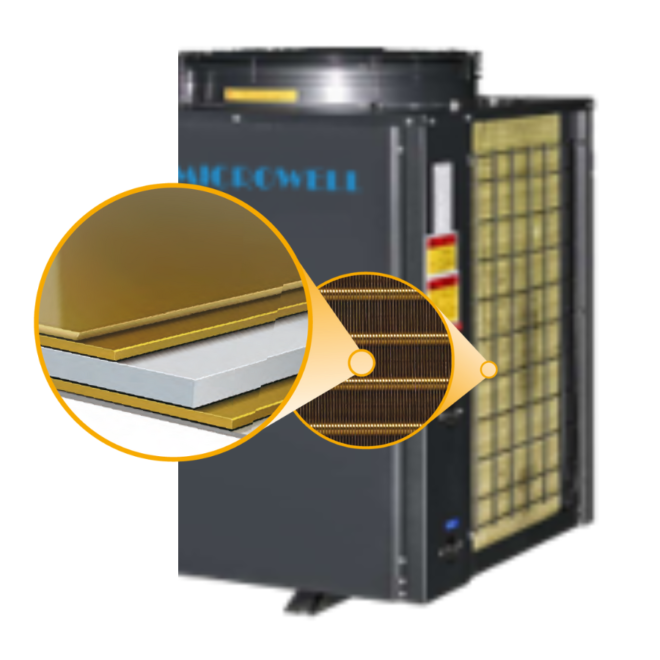

GoldFin - epoxid aluminium 100% corrosion free

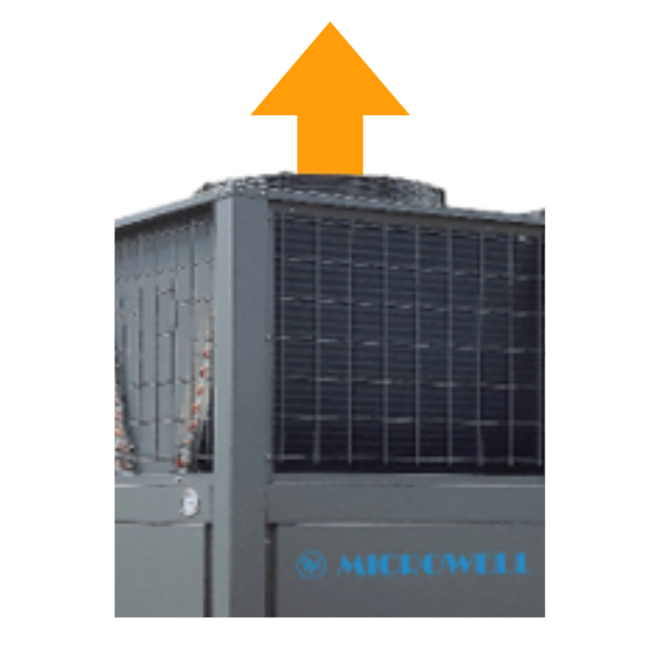

Vertical discharge

Reliable solution for Middle East

Model
Max 50
Max 125
Max 150
Max 250
Max 300
Max 350
Max 450
Power Supply V/PH/Hz 380/3 380/3 380/3 380/3 380/3 380/3 380/3
Heating Capacity(A27W26) kW 50 125 150 250 300 350 450
Available frequencies Hz 50-60 50-60 50-60 50-60 50-60 50-60 50-60
Available ambient temperature range 4-season / Tropical 55 °C 4-season / Tropical 55 °C 4-season / Tropical 55 °C 4-season / Tropical 55 °C 4-season / Tropical 55 °C 4-season / Tropical 55 °C 4-season / Tropical 55 °C
Heating Capacity(A27W26) BTU/h 170.600 426.500 511.800 853.000 1.023.600 1.194.200 1.535.400
COP (A27W26) 5.9 6.2 6.1 6.1 6.2 5.9 5.9
Input Power (A27W26) kW 9 21 26 43 51 60 77
Input Current (A27W26) A 16 40 49 81 97 113 146
Heating Capacity(A15W26) kW 35 88 105 175 210 245 315
Heating Capacity(A15W26) BTU/h 119.500 298.600 358.260 597.100 716.520 835.940 1.074.780
Input Current (A15W26) A 15 36 43 72 87 101 130
Cooling Capacity(A46W30) kW 30 75 90 150 180 210 270
Cooling Capacity(A46W30) BTU/h 101.455 253.638 245.700 409.500 511.800 573.300 737.100
EER (A46W30) 3.0 3.1 3.0 3.0 3.1 3.0 3.0
Input Power cooling (A46W30) kW 10 25 30 50 60 70 90
Input Current cooling (A46W30) A 19 47 57 95 114 133 171
Compressor type Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Compressor Qty 2 2 2 4 4 6 6
Fan Qty 2 2 2 2 2 6 6
Noise dB(A) 60 65 65 68 70 95 80
Water Flow Volume m3/h 12 30 30 60 72 84 90
Water Pressure Drop kpa 18 30 30 55 56 77 90
Fan Direction vertical vertical vertical vertical vertical vertical vertical
Refrigerant Type R407C R407C R407C R407C R407C R407C R407C
Unit Net Dimensions ( L/W/H ) mm 1500X800X1230 2050X1065X2010 2050X1065X2010 2300X1350X2360 2300X1350X2360 3000X2000X2300 3000X2000X2300
Unit Shipping Dimensions ( L/W/H ) mm 1540X900X1380 2150X1200X2200 2150X1200X2200 2400X1520X2560 2400X1520X2560 3150X2100X2500 3150X2100X2500
